Switch Energy 200 Watt MaxPower MPPT Folding Solar Panel Kit

RV CATALOGUE

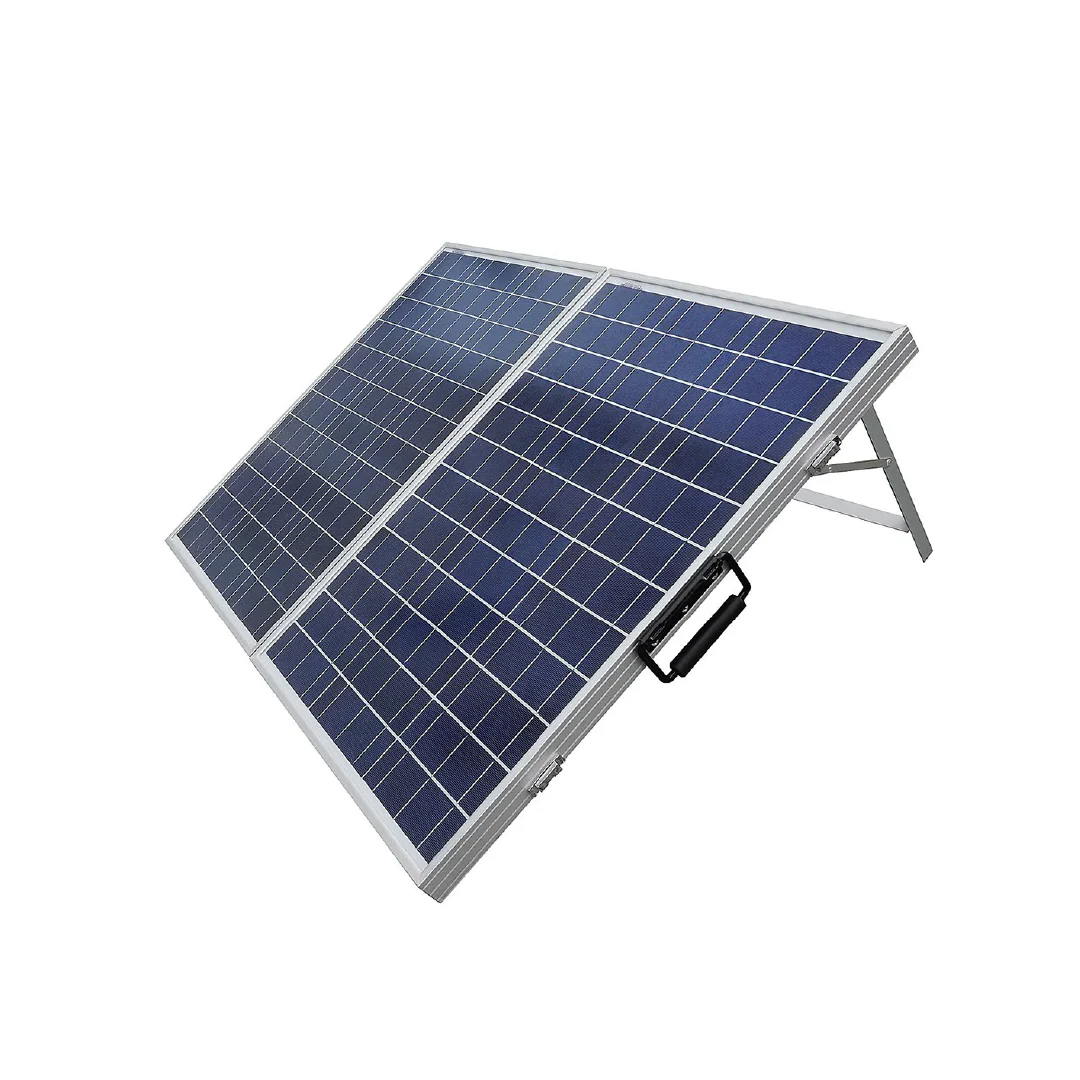

The Switch Energy 200 W MaxPower MPPT Folding Solar Panel Kit is a portable, foldable solar kit designed to deliver efficient off-grid power wherever you go. It includes two 100 W monocrystalline panels mounted on a foldable frame, a 20 A MPPT charge controller, all wiring, mounting brackets, and a durable carry case. The kit supports both 12 V and 24 V systems (auto-detect), and features adjustable tilt bracing to capture maximum sunlight. Ideal for RVs, boats, camping, and remote battery charging.

Key specs:

  • Total maximum power: 200 W (2 × 100 W

  • Vmp: ~ 20.2 V (12 V mode) / ~ 40.4 V (24 V mode)

  • Built-in 20 A MPPT controller, auto-ID 12/24 V

  • Tilt-adjustable aluminum bracing & folding design for portability

  • IP65 junction box & rugged connectors

$414.07

In stock: 10

Additional Information

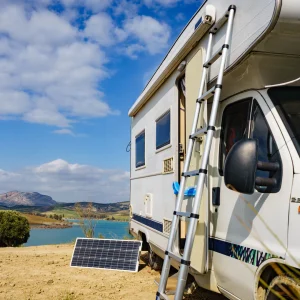

RV / Travel Trailer Solar Boost

Perfect for RV owners looking to reduce generator run time or supplement campground power. Set it up at your campsite, tilt it toward the sun, and feed battery banks for lights, fans, pumps, or small appliances.

Boating / Marine Power Support

Ideal for boats or liveaboard systems where wiring to a rooftop array is challenging. The fold-out panels can be placed on deck or railings where sunlight is best.

Off-grid / Emergency Battery Charging

Use it in remote cabins, field stations, or as a backup to charge batteries when grid power is unavailable. Its portability makes it a go-to solution when mobility or temporary installation is needed.

Frequently Asked Questions

Will it charge both 12 V and 24 V systems?
Yes — the included MPPT controller auto-detects system voltage (12/24 V) and adjusts its operation accordingly.

What kind of output should I expect daily?
Depends on location and sun hours. Under ideal conditions (5–6 peak sun hours), 200 W might produce 1.0 – 1.2 kWh before accounting for system losses.

How durable is this kit?
The panels are built with tempered glass and sturdy frames; the junction box is rated IP65. The foldable frame uses aluminum bracing.

Can I leave it out in changing weather?
The kit is designed for occasional exposure (dew, light rain), but it’s best to avoid prolonged soaking. Always stow the panels or secure them in strong wind.

Can I expand it later?
Potentially — but expansion depends on the capacity of the MPPT controller and matching panel voltages. For large expansions, a higher-rated controller may be needed.

What are the voltage/current specs?
In 12 V mode: Vmp ≈ 20.2 V, Imp ≈ 9.91 A.
In 24 V mode: Vmp ≈ 40.4 V, Imp ≈ 4.96 A.
